MFC Ribbon Bar Resources

New in April 2017.



MFC ribbon bar resources can be translated with RC-WinTrans in the form of the following two MFC file types:

FILE EXTENSION

DESCRIPTION

.mfcribbon-ms

Ribbon bar.  XML source code file.  The ".mfcribbon-ms" fie is included in an RC file.

EXE  and .DLL

Binary MFC application file.  A ribbon bar is included as a binary resource.



A Ribbon Bar Viewer is available to preview a ribbon bar with the source or the translation text. Open the Ribbon Bar Viewer by selecting a text belonging to the ribbon bar and using the Open Resource Type Editor command (see figure below).

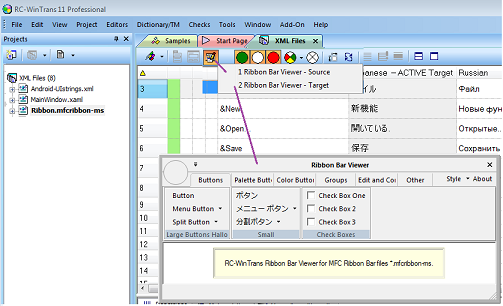

Figure: The Ribbon Bar Viewer (click here or on image to enlarge...).





Reference: Microsoft Ribbon Designer (https://msdn.microsoft.com/en-us/library/ee354408.aspx).



Ribbon Bar sample: A ribbon bar translation example is included with RC-WinTrans ("MFC Ribbon Bar").  Access it via the Samples page.
