Visual Studio .NET Project Dialog Box



The Visual Studio .NET Project dialog box gives an overview of files contained in a Visual Studio .NET project and an RC-WinTrans translation project and lets you "align," or match up, the files contained in each.



See also:  "Aligning Visual Studio .NET Project Files."

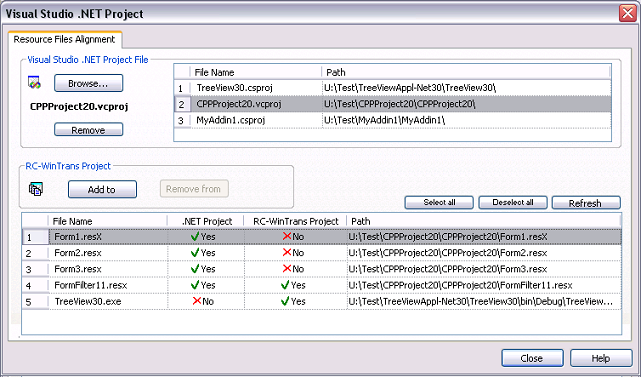

Figure:  The Visual Studio .NET Project dialog box.





Symbols



Green checkmark:

The file exists in the project.

Red "X" mark:

The file does not exist in the project.





Dialog Box Items



·

Files Listbox

–

Source files:  files contained in the Visual Studio project respective to the RC-WinTrans translation project.

–

".NET Project" column:  indicates whether a file is in the Visual Studio project (yes/no).

–

"RC-WinTrans Project" column:  indicates whether a file is in the RC-WinTrans project (yes/no).



SORTING: The file list can be sorted by clicking on the respective column header.



·

Add to.  Button

Adds the selected file(s) to the RC-WinTrans translation project.



·

Remove from   Button

Removes the selected file(s) from the RC-WinTrans translation project.



·

Browse Button

Opens a "File Open" dialog box to select the Visual Studio project file.
