Trados Toolbar and Menu

Trados-related topic



The Trados toolbar (Figure 1) and Trados menu (Figure 2) are available if the Trados™ Translator's Workbench is installed.  Both menu and toolbar provide commands for working with Trados translation memories (TMs) in conjunction with RC-WinTrans.





Figure 1:  The Trados toolbar.

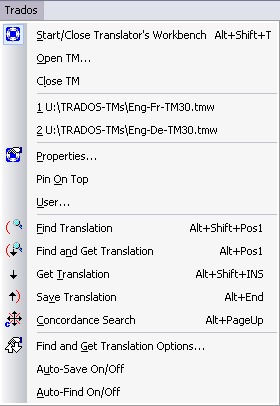

Figure 2:  The Trados menu.





Commands



Start/Close Trados Translator's Workbench

Switch button.  Starts and closes the Trados Translator's Workbench.



Status Indicators

If a translation memory is selected (i.e., active in the Translator's Workbench), a status indicator (red/green dot) appears on the toolbar button.  A red dot indicates that the TM’s language ID(s) does/do not match the one(s) for the current project's source and/or target language.  When a red dot is shown the TM is disabled for all operations related to working on or with the TM.  A green dot indicates that the translation project's source and target language IDs match those of the TM- the TM can be modified and used to support the translation process for that particular project.



Trados TM Properties

Opens the Properties page for the active TM.  Moving the mouse cursor over the button displays a tooltip text indicating the source and target languages of the TM.



Trados: Find and Get Translation Options

Opens the Dialog Box/TM Options dialog box where you can set various options for working with dictionaries and translation memories.



Find Translation in Trados TM

Searches the active TM for a translation for the source text of the item currently selected in RC-WinTrans.  Use the drop-down button on the right to enable/disable the auto-find function for the TM (see also: Automated Functions for Trados).



Find and Get (Auto-Translate)

Searches the active TM for a translation for the currently selected source item.  The best matching translation is entered as the target text and saved.  (NOTE: This function will not overwrite an existing translation.)  Use the drop-down button on the right to enable/disable the auto-find-get function for the TM.



Get Translation from Trados TM

Copies the translation text selected in the Translator's Workbench to the Target edit field in RC-WinTrans' Translation Edit bar.



Save Translation to Trados TM

Saves the text in the Translation Edit bar's Target edit field to the active Trados TM.  Use the drop-down button on the right to enable/disable the auto-save function for the TM (see also: Automated Functions for Trados).



Trados Concordance Search

Runs the concordance search for the item currently selected in RC-WinTrans.
